Exploratory Data Analysis (EDA)

Overview

Teaching: 130 min
Exercises: 130 min

Questions

What are the structure and content of the data?

What are the distributions and relationships of variables?

What patterns or trends can be identified through visualizations?

Objectives

Understand the purpose and importance of EDA in the data analysis pipeline.

Learn how to use Python libraries for EDA.

To gain insights into the data by summarizing its main characteristics.

Exploratory Data Analysis (EDA)

Exploratory Data Analysis (EDA) is an analytical approach aimed at uncovering the inherent characteristics of datasets, utilizing statistical (non-graphical) and visualization (graphical) techniques.

Agenda

to gain insights into the data by summarizing its main characteristics:
- Find patterns,
- Identify outliers,
- Explore the relationship between variables,
- Helps to indentify features (aka feature selection)

EDA techniques:

Basic Statistical Summary
Histogram and Density Plot
Box Plots
Violin Plot
Time Series Plot and Bar Chart
Correlation Analysis

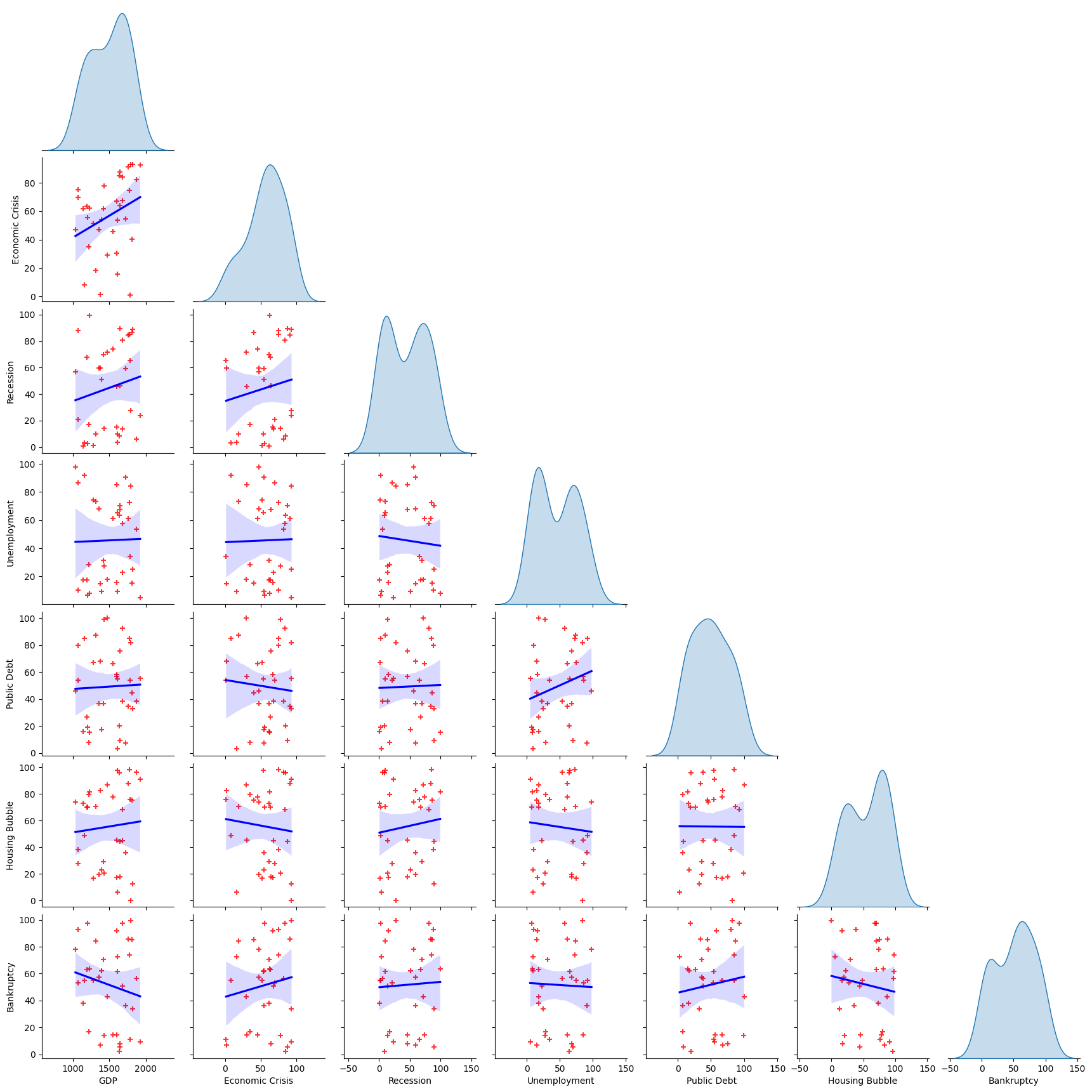

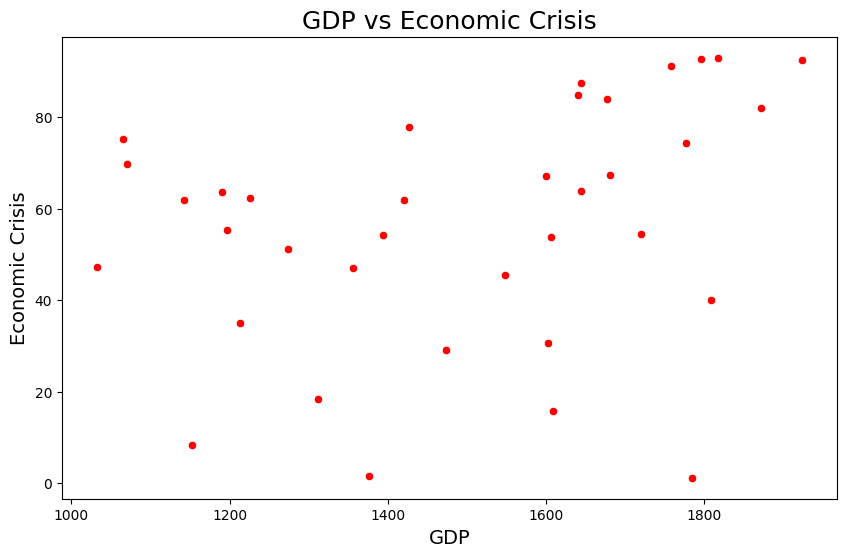

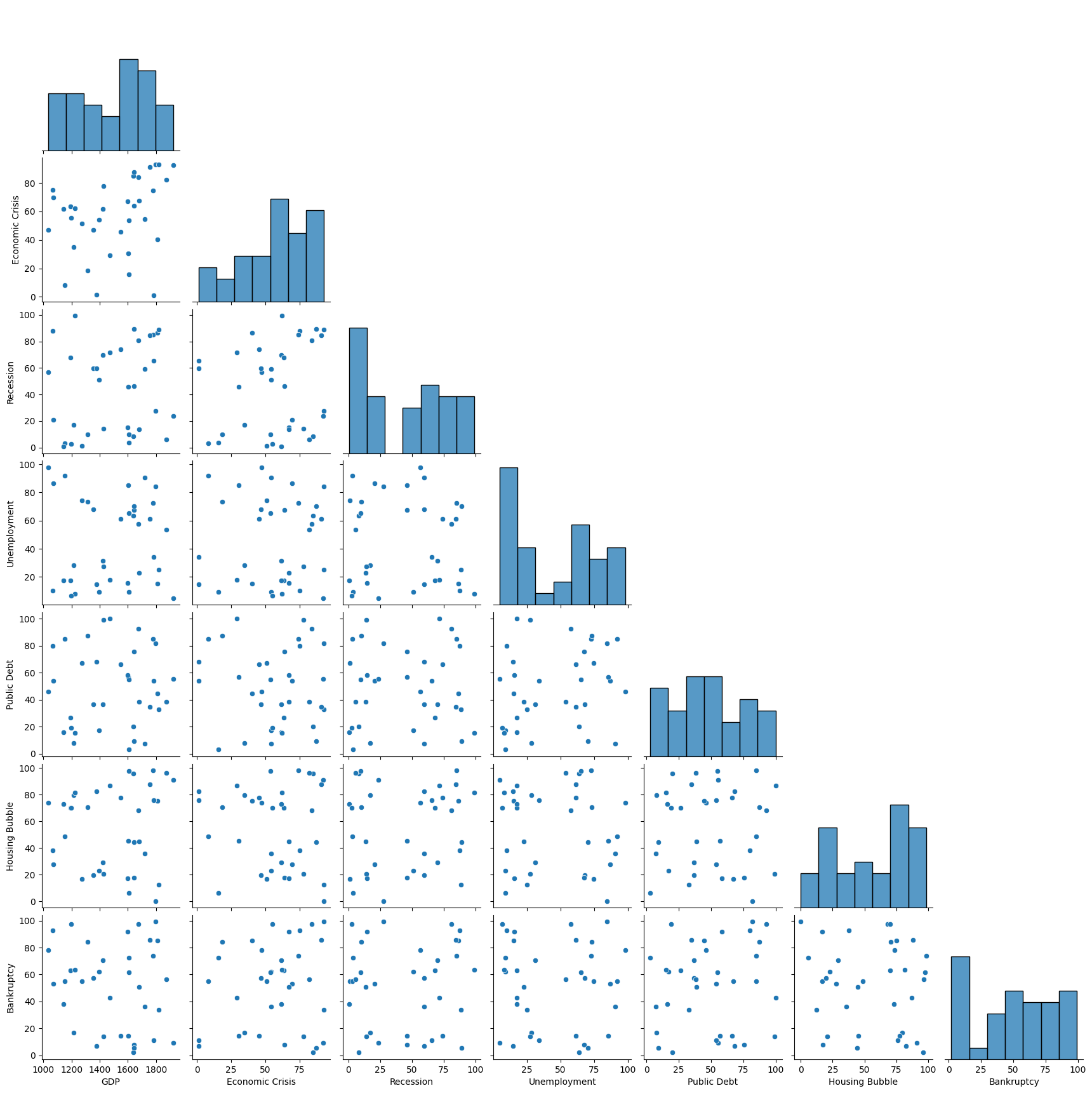

Bivariate Relationships (Bivariate Scatter and Pair Plot )
Automatic EDA Tools

Importing Libraries

Before diving into data analysis, it’s essential to import the necessary Python libraries that provide functionalities for data manipulation, visualization, and interactive features.
Commonly used libraries include Pandas for data handling, NumPy for numerical operations, Matplotlib and Seaborn for plotting, and Ipywidgets for interactive widgets.
Use standard aliases for libraries to maintain consistency and readability.

# Import pandas and numpy
import pandas as pd
import numpy as np

# plotting libraries
import matplotlib.pyplot as plt
import seaborn as sns

# Interactive Widgets
import ipywidgets as widgets

# Correlation Matrix
import klib

# Automatic Visualization Tools
# Summary Statistics
import summarytools as st

Load Example Data

Loading data into your environment is the first step in any data analysis task.
It’s crucial to understand the structure and content of your dataset before proceeding with analysis.

GDP GT Data

# Load the data from CSV files
gdp_df = pd.read_csv('gdp_gt_data.csv')

Data Understanding/Explore the DataFrame

Understanding the structure and content of your DataFrame is vital.
This involves examining the dimensions, data types, and a preview of the data to identify any immediate issues or areas that require attention.

# Display the shape of the data frame
gdp_df.shape

Data Shape

# Display the first few rows of the data frame
gdp_df.head()

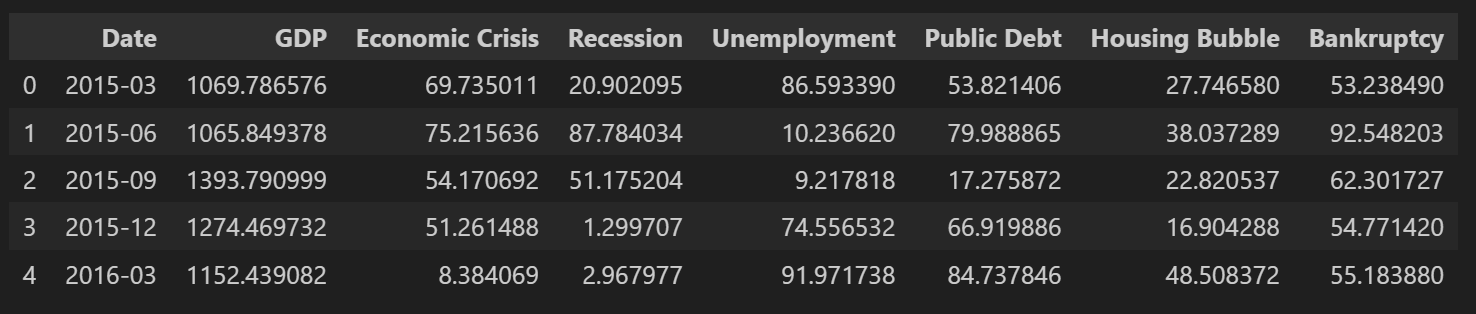

Data head

# Display the last few rows of the data frame
gdp_df.tail()

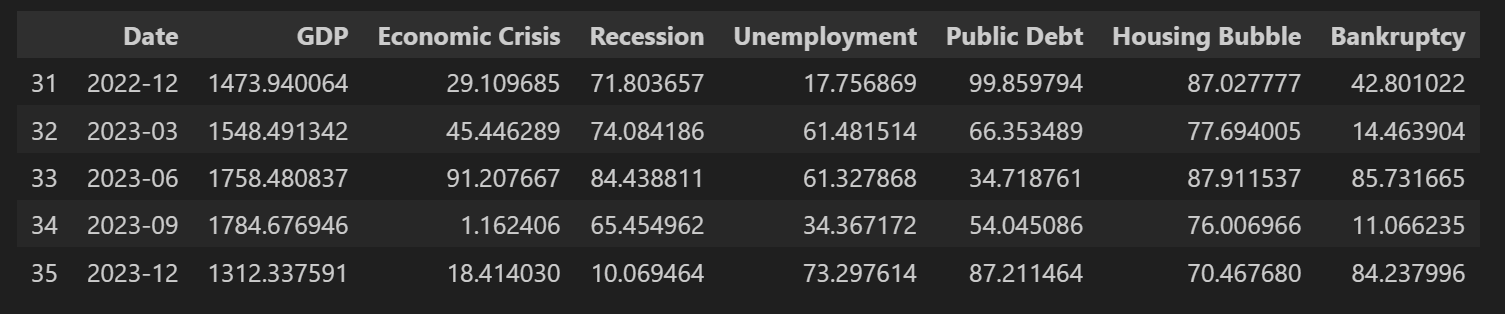

Data tail

# Display the data types of the columns
gdp_df.dtypes

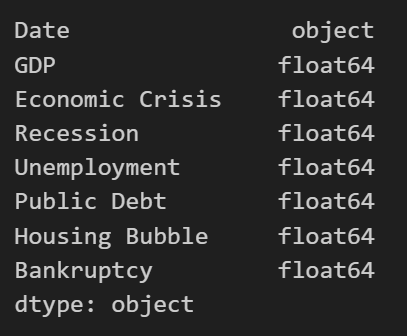

Data dtypes

# Display the information of the data frame
gdp_df.info()

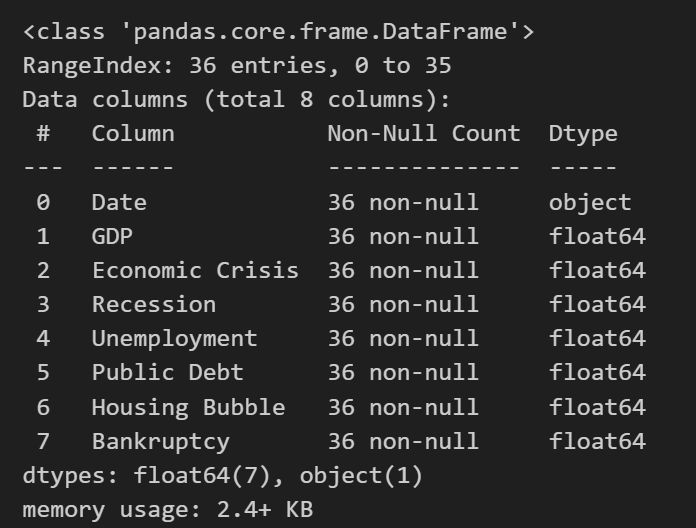

Data info

# Display the column name of the data frame
gdp_df.columns

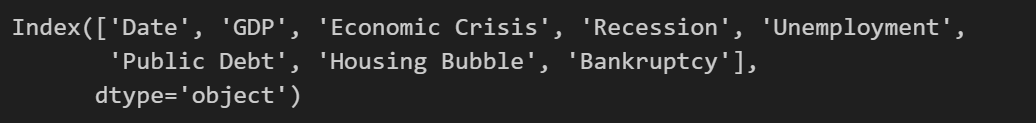

Data columns

Basic Statistical Summary

Generating summary statistics provides a quick overview of the central tendency, dispersion, and shape of the dataset’s distribution.
This step helps in identifying any anomalies or outliers in the data.
- mean: The average value.
- std: The standard deviation, indicating data dispersion.
- min and max: The minimum and maximum values.
- 25%, 50%, 75%: The 25th, 50th (median), and 75th percentiles.
- Coefficient of variation (CV) is a statistical measure that expresses the extent of variability in relation to the mean of the population.
  - Comparing Variability Across Different Variables: CV allows you to compare the relative variability between datasets or variables with different units or scales.
  - High CV Values: Indicate that the data points are more dispersed around the mean.
  - Low CV Values: Suggest that the data points are closely clustered around the mean.
Skewness and Kurtosis
Skewness refers to the asymmetry of the distribution.
- Right-skewed (positive skew): Tail on the right side.
- Left-skewed (negative skew): Tail on the left side.
Kurtosis measures the “tailedness” of the distribution.
Outlier Detection: Outliers appear as isolated bars in histograms or as long tails in density plots.

# Drop the Date column
gdp_gt_d = gdp_df.drop(columns=['Date'])

# Calculate the summary statistics
summary_stats = gdp_gt_d.describe().T

# Skewness
summary_stats['Skewness'] = gdp_gt_d.skew()

# kurtosis
summary_stats['Kurtosis'] = gdp_gt_d.kurtosis()

# Add coefficient of variation (CV)
summary_stats['CV'] = (gdp_gt_d.std() / gdp_gt_d.mean()) * 100

summary_stats.T

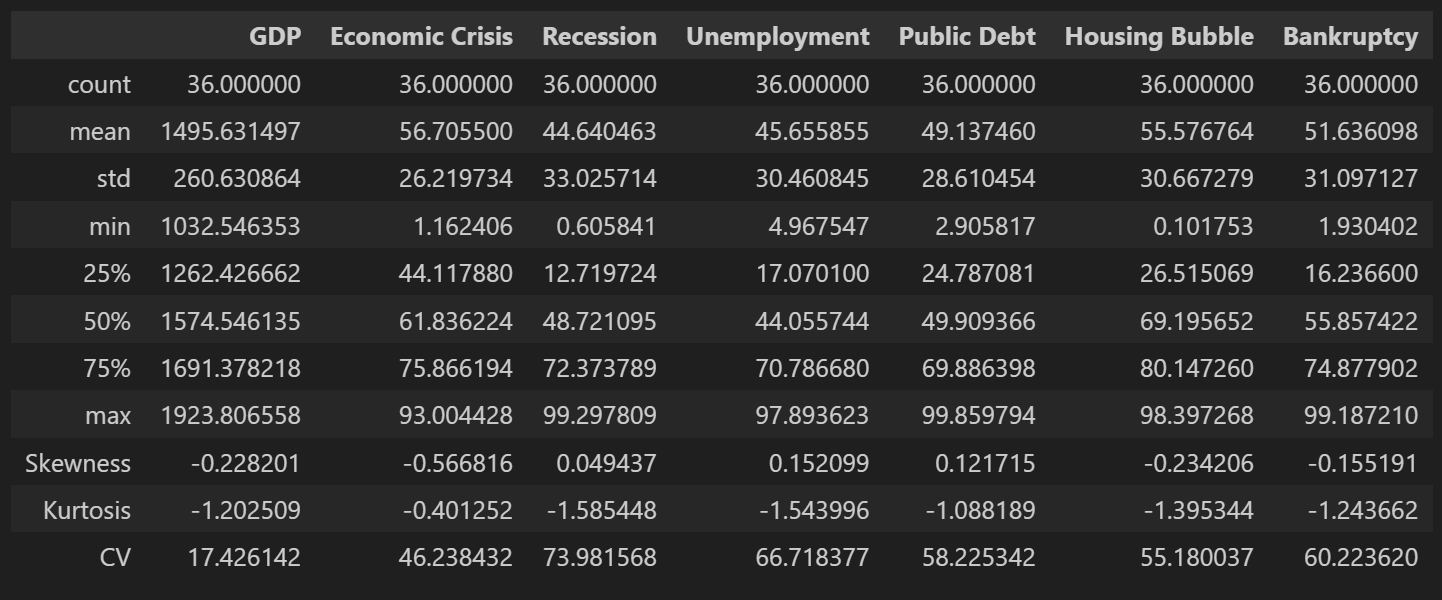

Data df-summary

Histogram and Density Plot

Histograms and density plots are essential tools for visualizing the distribution of a single variable.
They help in understanding the frequency of data points and the underlying probability distribution.
Histograms and density plots are fundamental tools in Exploratory Data Analysis (EDA) for machine learning applications.
Histograms display the frequency of data points within specified intervals (bins), allowing you to see how data is distributed across different value ranges.
Density Plots offer a smoothed, continuous estimate of the data’s probability density function, providing a clear view of the data’s distribution shape.
Outlier Detection:
- Outliers appear as isolated bars in histograms or as long tails in density plots.
- Outliers can disproportionately influence model parameters, especially in models sensitive to extreme values (e.g., linear regression).

# Extract the GDP column from the DataFrame
gdp = gdp_gt_d['GDP']

# Create a new figure for the plot with a specified size
plt.figure(figsize=(10, 6))

# Create a histogram plot with a kernel density estimate (KDE) overlay
# - gdp_gt_d['GDP']: The data to plot
# - kde=True: Add a KDE plot
# - bins=10: Number of bins for the histogram
# - alpha=0.7: Transparency level of the histogram bars

sns.histplot(gdp_gt_d['GDP'], kde=True, bins=10, alpha=0.7)

# Set the title of the plot
plt.title('Histogram of GDP')

# Set the label for the x-axis
plt.xlabel('GDP')

# Set the label for the y-axis
plt.ylabel('Frequency')

# Add a grid to the plot for better readability
plt.grid(True)

# Adjust the layout to make sure everything fits without overlapping
plt.tight_layout()

# Display the plot
plt.show()

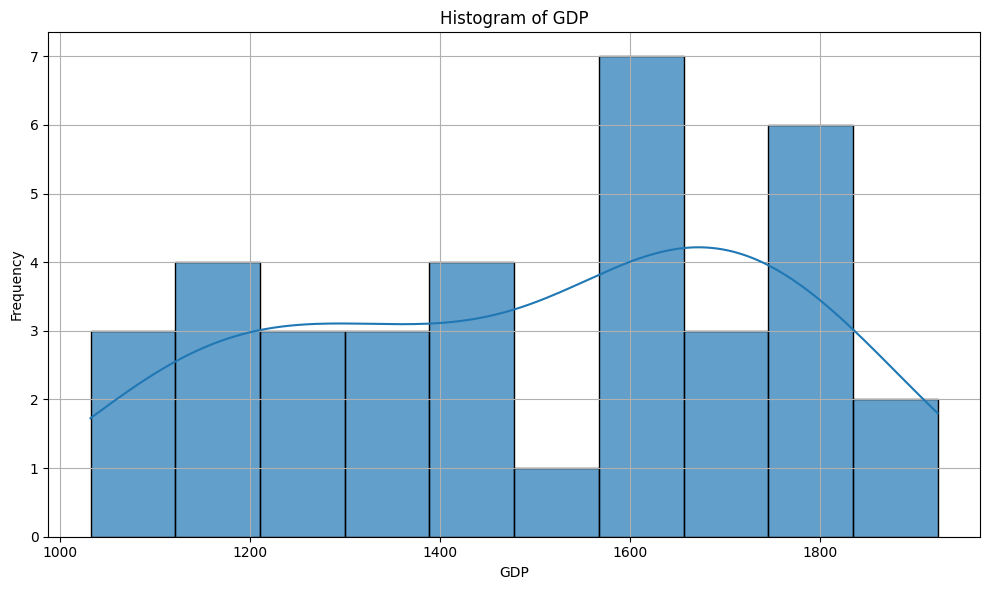

Data hist

def plot_distribution(column):
    plt.figure(figsize=(10, 6))
    sns.histplot(gdp_gt_d[column], kde=True, color='r', bins=15)
    plt.title(f'{column} Distribution', size=18)
    plt.xlabel(column, size=14)
    plt.ylabel('Density/Frequency', size=14)
    plt.show()


# Create a dropdown widget for selecting the column
column_selector = widgets.Dropdown(
    options=gdp_gt_d.columns,
    description='Column:',
    disabled=False,
)

# Link the dropdown widget to the plot_distribution function
interactive_plot = widgets.interactive_output(plot_distribution, {'column': column_selector})

# Display the widget and the interactive plot
display(column_selector, interactive_plot)

Box Plots

Box plots are excellent for visualizing the distribution of data and identifying outliers.
Box plots are graphical representations used in Exploratory Data Analysis (EDA) to summarize and visualize the distribution of a dataset.
They display the dataset’s central tendency, dispersion, and skewness, and are particularly useful for detecting outliers.
- Minimum (Q0): The smallest data point excluding outliers.
- First Quartile (Q1): The median of the lower half of the dataset (25th percentile).
- Median (Q2): The middle value of the dataset (50th percentile).
- Third Quartile (Q3): The median of the upper half of the dataset (75th percentile).
- Maximum (Q4): The largest data point excluding outliers.

# Extract the GDP column from the DataFrame
gdp = gdp_gt_d['GDP']

# Create a new figure for the plot with a specified size
plt.figure(figsize=(10, 5))

# Create a boxplot for the GDP data
# - x=gdp: The data to plot
# - color='r': The color of the boxplot
sns.boxplot(x=gdp, color='r')

# Set the title of the plot with a specified font size
plt.title('GDP Boxplot', size=18)

# Set the label for the x-axis with a specified font size
plt.xlabel("GDP", size=14)

# Add a grid to the plot for better readability
plt.grid(True)

# Adjust the layout to make sure everything fits without overlapping
plt.tight_layout()

# Display the plot
plt.show()

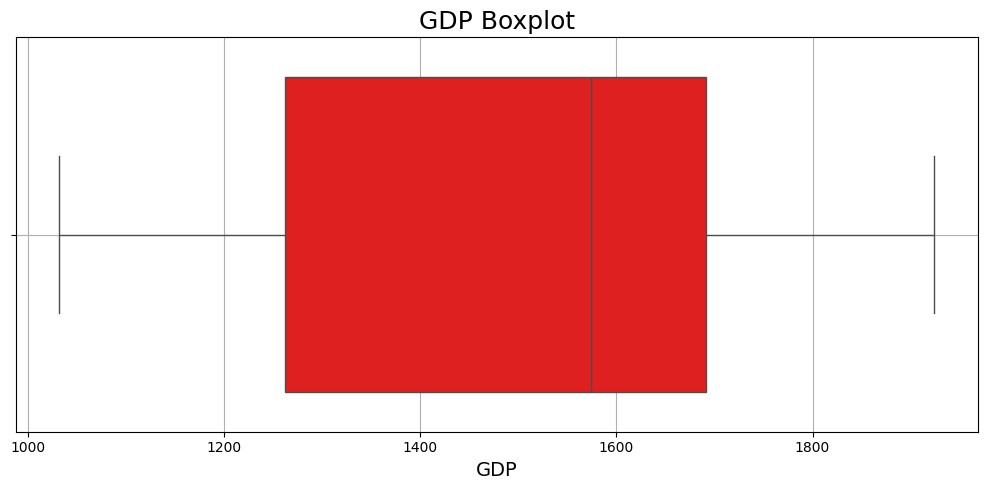

Data box plot

# Create a function to plot the boxplot
def boxplot_plot(column):
    plt.figure(figsize=(10, 5))
    sns.boxplot(x=gdp_gt_d[column], color='r')
    plt.title(f'{column} Boxplot', size=18)
    plt.xlabel(column, size=14)
    plt.grid(True)
    plt.tight_layout()
    plt.show()

# Create a dropdown widget for selecting the column
column_selector = widgets.Dropdown(
    options=gdp_gt_d.columns,
    description='Column:',
    disabled=False
)

# Link the dropdown widget to the boxplot_plot function
interactive_box_plot = widgets.interactive_output(boxplot_plot, {'column': column_selector})

# Display the widget and the interactive plot
display(column_selector, interactive_box_plot)

Violin Plot

They combine the features of a box plot and a kernel density plot, providing a more detailed representation of data distribution.
- Visualizing Data Distribution
- Multiple Peaks Identification: Violin plots can reveal if a dataset has multiple modes, which might not be apparent in other plot types.
- Box Plot Elements Included: Inside the violin shape, there’s often a box plot that shows the median, interquartile range (IQR), and sometimes outliers.
- Assessing Skewness and Kurtosis
- Outlier Detection

# Extract the GDP column from the DataFrame
gdp = gdp_gt_d['GDP']

# Create a new figure for the plot with a specified size
plt.figure(figsize=(10, 6))

# Create a violin plot for the GDP data
# - y=gdp: The data to plot on the y-axis
sns.violinplot(y=gdp)

# Set the title of the plot
plt.title('Violin Plot of GDP')

# Set the label for the y-axis
plt.ylabel("GDP")

# Display the plot
plt.show()

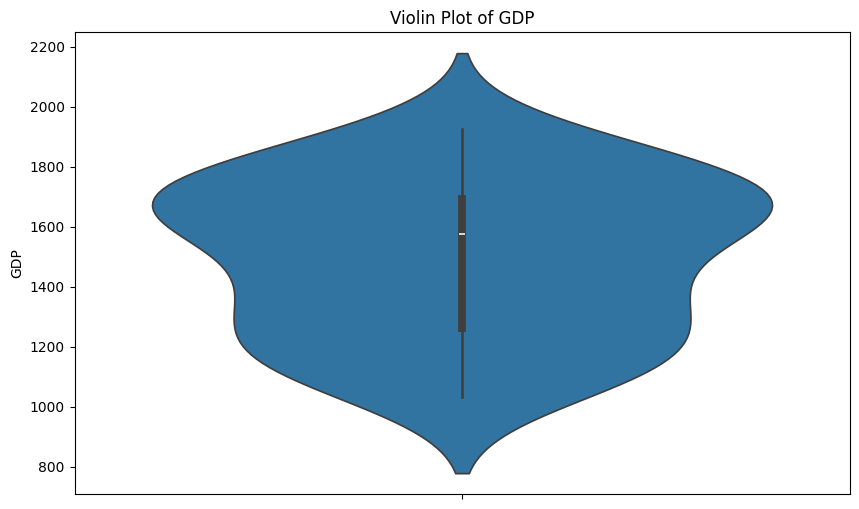

Data violin

def plot_violin(column):
    plt.figure(figsize=(10, 6))
    sns.violinplot(y=gdp_gt_d[column])
    plt.title(f'Violin Plot of {column}')
    plt.ylabel(column)
    plt.show()

# Create a dropdown widget for selecting the column
column_selector = widgets.Dropdown(
    options=gdp_gt_d.columns,
    description='Column:',
    disabled=False,
)

# Link the dropdown widget to the plot_violin function
interactive_plot = widgets.interactive_output(plot_violin, {'column': column_selector})

# Display the widget and the interactive plot
display(column_selector, interactive_plot)

Time Series Plot

Time Series Plots are essential tools in Exploratory Data Analysis (EDA) for machine learning applications involving temporal data.
- Visualizing Temporal Trends.
- Identifying Seasonality and Cyclic Patterns.
- Spotting Anomalies and Outliers.
- Assessing Stationarity.

# Copy the original dataset
gdp_gt_dt = gdp_df.copy()

# Convert the 'Date' column to datetime
gdp_gt_dt['Date'] = pd.to_datetime(gdp_gt_dt['Date'])

# Set 'Year-Month' as the index
gdp_gt_dt.set_index('Date', inplace=True)

# Extract the GDP column from the DataFrame
gdp = gdp_gt_dt['GDP']

# Create a new figure for the plot with a specified size
plt.figure(figsize=(10, 6))

# Plot the GDP time series
# - gdp.plot(): Plots the GDP data as a time series
gdp.plot()

# Set the title of the plot
plt.title('GDP Time Series')

# Set the label for the x-axis
plt.xlabel('Date')

# Set the label for the y-axis
plt.ylabel("GDP")

# Add a grid to the plot for better readability
plt.grid(True)

# Adjust the layout to make sure everything fits without overlapping
plt.tight_layout()

# Display the plot
plt.show()

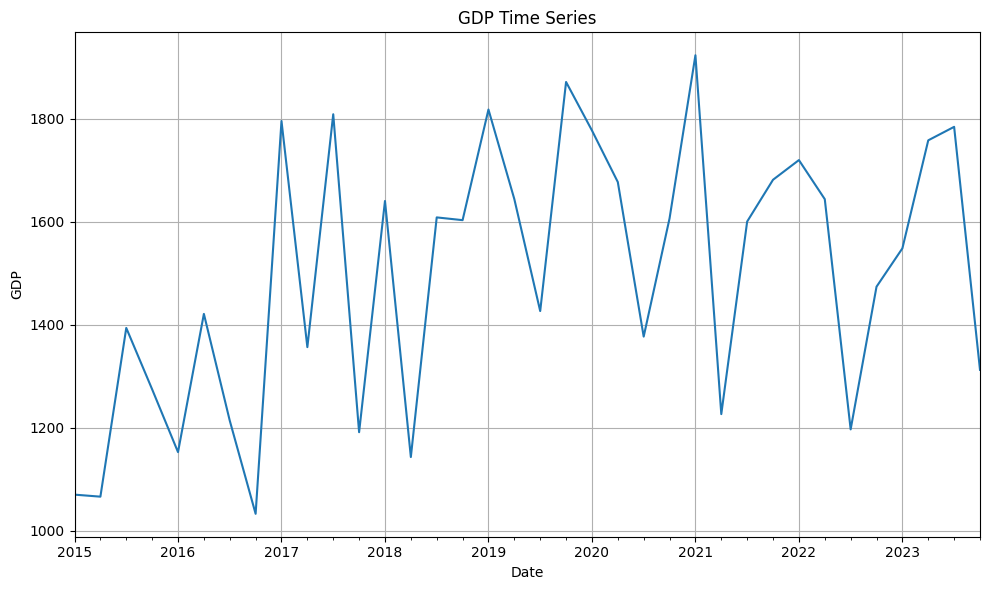

Data ts

# Create a function to plot the time series
def plot_time_series(column):
    plt.figure(figsize=(10, 6))
    gdp_gt_dt[column].plot()
    plt.title(f'{column}')
    plt.xlabel('Date')
    plt.ylabel(column)
    plt.grid(True)
    plt.tight_layout()
    plt.show()

# Create a dropdown widget for selecting the column
column_selector = widgets.Dropdown(
    options=gdp_gt_dt.columns,
    description='Column:',
    disabled=False,
)

# Link the dropdown widget to the plot_time_series function
interactive_plot = widgets.interactive_output(plot_time_series, {'column': column_selector})

# Display the widget and the interactive plot
display(column_selector, interactive_plot)

Correlation Analysis

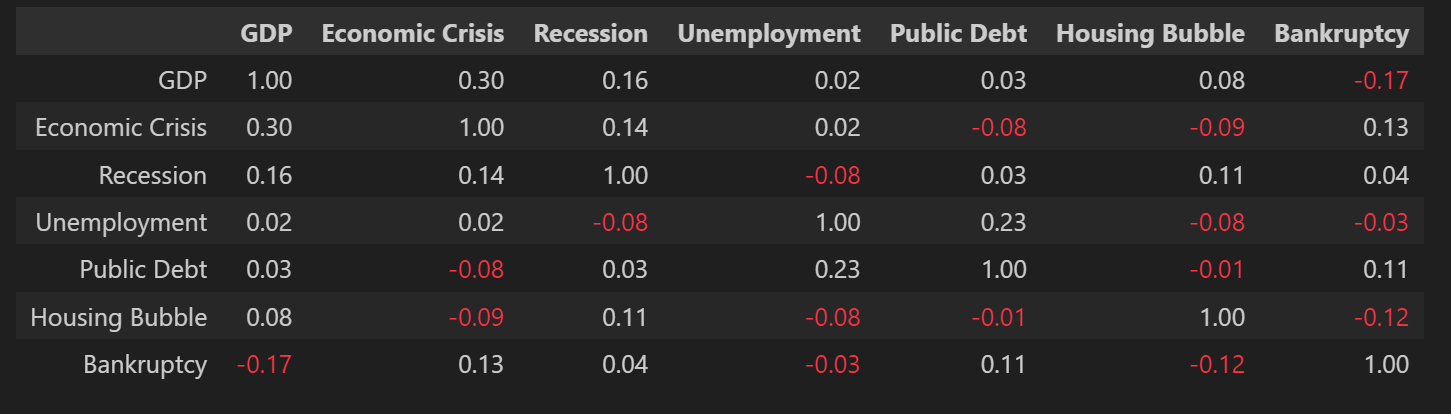

Correlation Table

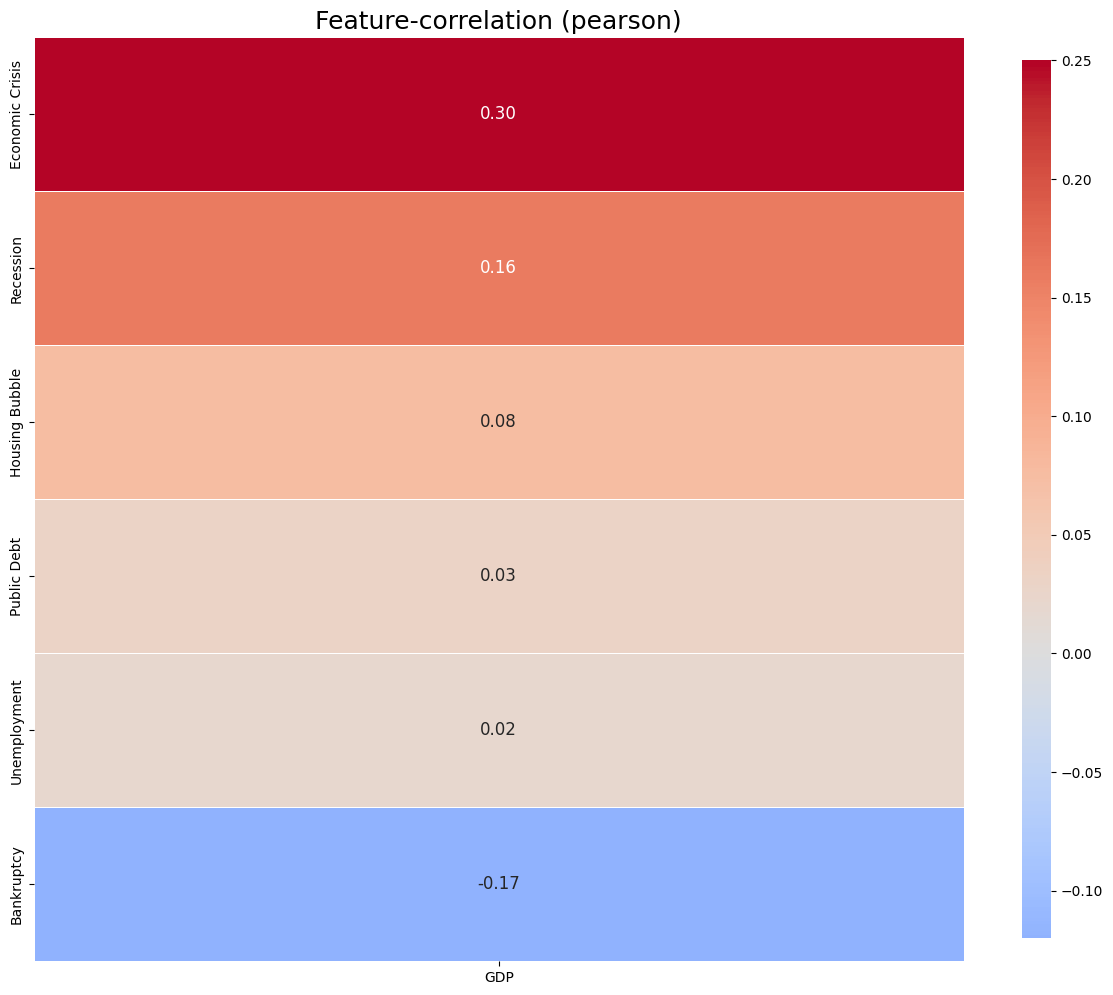

Correlation analysis measures the strength and direction of relationships between numerical variables, helping identify predictors or dependencies.
It measures the strength and direction of the linear relationship between two variables.
It helps in understanding how variables are related to each other, which is crucial for feature selection and detecting multicollinearity.

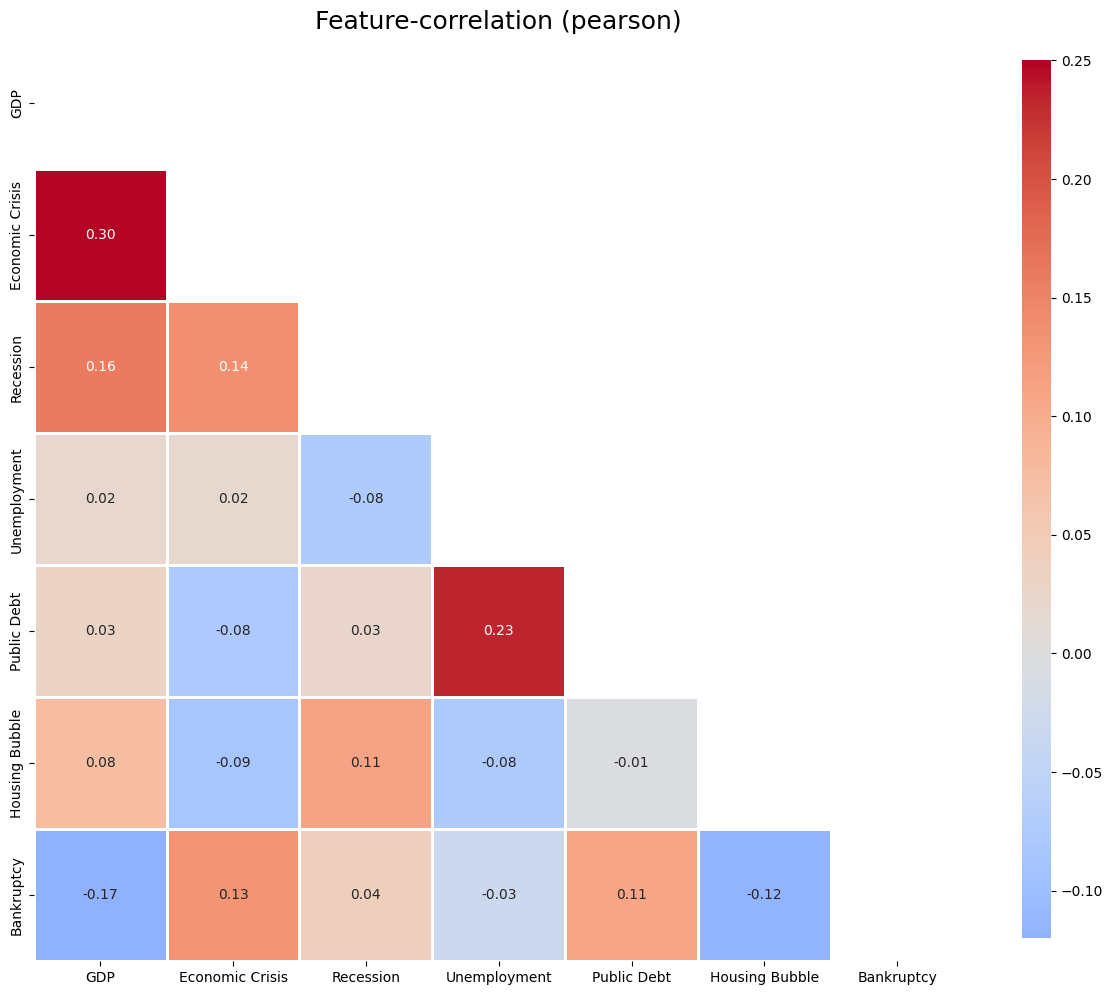

klib.corr_mat(gdp_gt_dt)

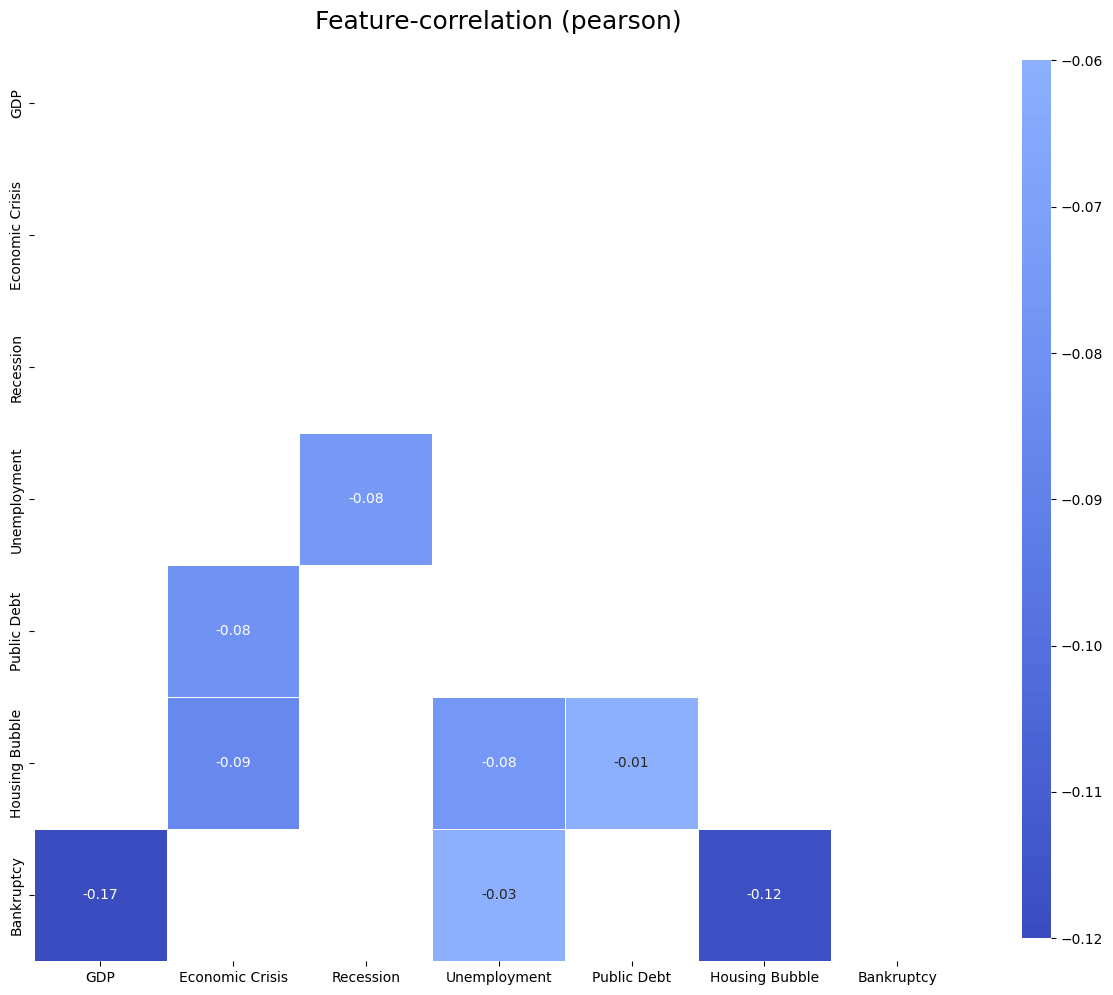

Data corr

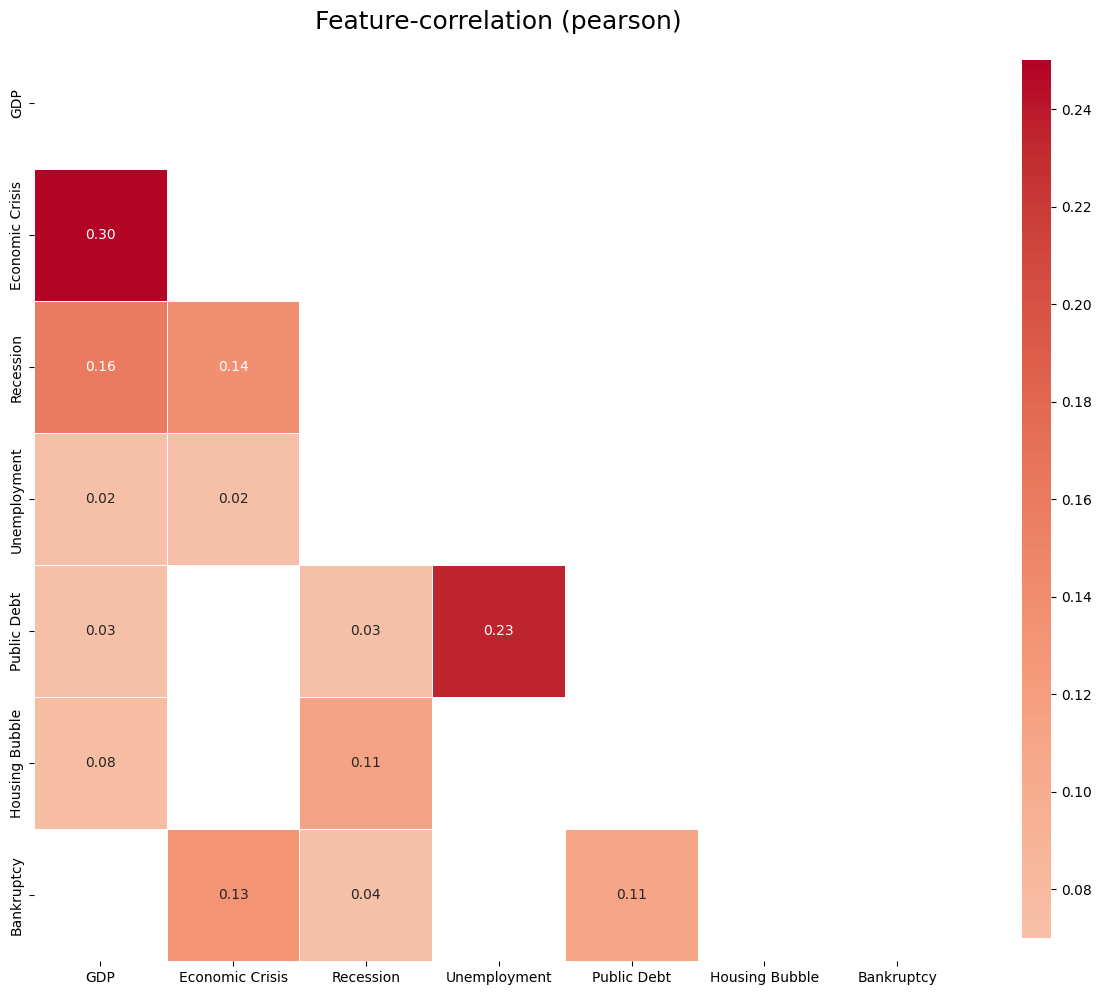

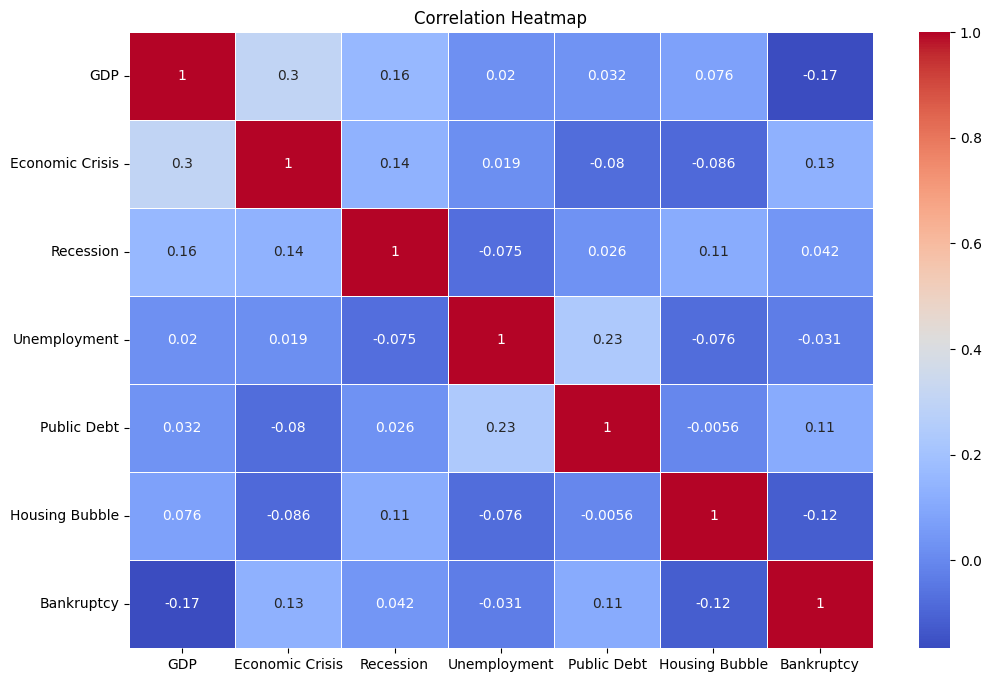

Correlation Heatmap

Heatmap Visualization: Use a heatmap to represent correlations visually.

plt.figure(figsize=(12, 8))
sns.heatmap(gdp_gt_dt.corr(),
            annot=True,
            cmap='coolwarm',  # 'viridis', 'plasma', 'inferno', 'cividis'
            linewidths=0.5)
plt.title('Correlation Heatmap')
plt.show()

Data correlation-heatmap

Correlation Heatmap (Remove the second half)

klib.corr_plot(gdp_gt_dt,
               figsize=(15,12),
               annot=True,
               cmap='coolwarm', # 'viridis', 'plasma', 'inferno', 'cividis'
               linewidths=0.9,
               method='pearson', # 'pearson', 'kendall', 'spearman'
               )

Data correlation-heatmap

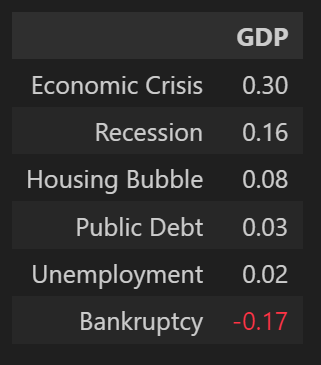

Correlation with target variables (1)

klib.corr_mat(gdp_gt_dt,
              method='pearson',
              target='GDP')

Data corr-target1

Correlation with target variables (2)

# Correlation of all features with the target
klib.corr_plot(gdp_gt_dt,
                target='GDP',
                figsize=(15,12),
                annot=True,
                cmap='coolwarm',
                linewidths=0.6,
                method='pearson',
                annot_kws={'size': 12},
                )

Data corr-target2

Positive Correlations (Filter Insights)

# Positive correlations
klib.corr_plot(gdp_gt_dt,
               split='pos',
               figsize=(15,12),
               annot=True,
               cmap='coolwarm',
               linewidths=0.5,
               method='pearson')

Data correlation-pos1

Negative Correlations (Filter Insights)

# Negative correlations
klib.corr_plot(gdp_gt_dt,
               split='neg',
               figsize=(15,12),
               annot=True,
               cmap='coolwarm',
               linewidths=-0.5,
               method='pearson'
               )

Data correlation-neg1

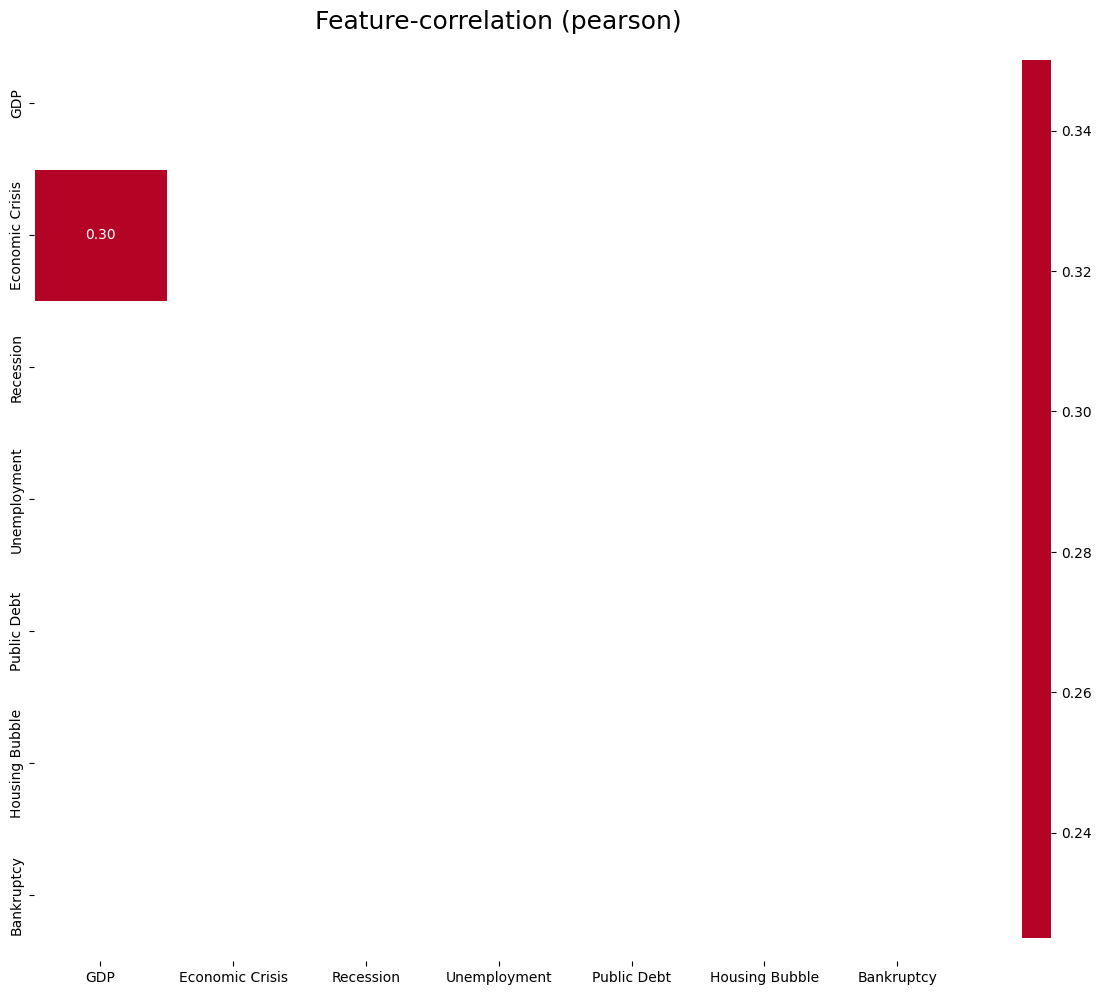

Positive Correlation greater than certain threshold (Filter Insights)

Focus on correlations above a threshold (e.g., >0.5 or <-0.5) to reduce noise.

klib.corr_plot(gdp_gt_dt,
               method='pearson',
               threshold=0.3,
               split='pos', # 'neg', 'low', 'high'
               figsize=(15,12),
               cmap='coolwarm',
               linewidths=0.5)

Data correlation-pos2

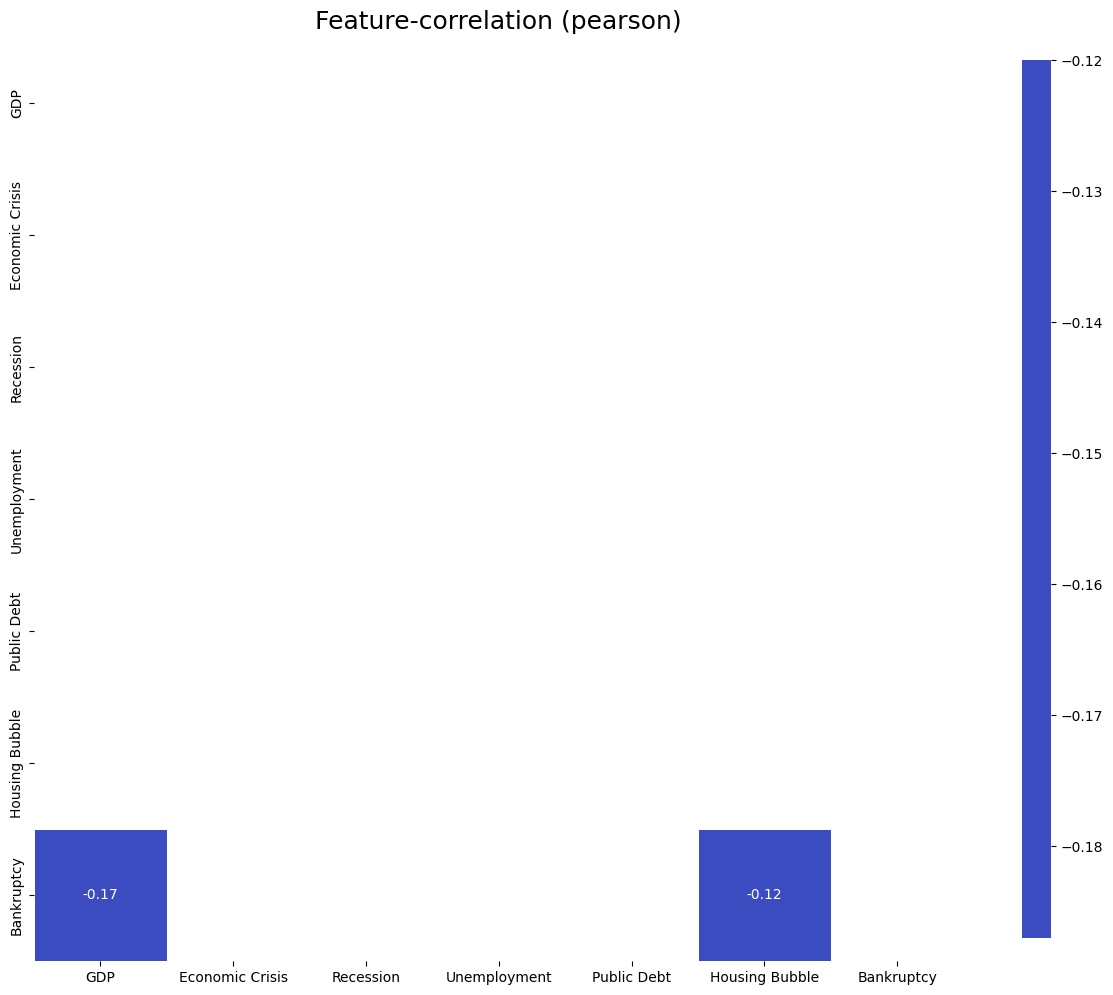

Negative Correlation less than certain threshold (Filter Insights)

Focus on correlations above a threshold (e.g., >0.5 or <-0.5) to reduce noise.

klib.corr_plot(gdp_gt_dt,
               method='pearson',
               threshold=-0.1,
               split='neg', # 'neg', 'low', 'high', 'pos'
               figsize=(15,12),
               cmap='coolwarm',
               linewidths=0.5)

Data correlation-neg2

Bivariate Relationships (Bivariate Scatter and Pair Plot)

Bivariate Scatter Plot

They are used to visualize the relationship between two numerical variables by plotting one variable along the x-axis and the other along the y-axis.
Visualizing Relationships Between Variables (Identifying Correlations): allow you to see the nature of the relationship between two variables whether it’s linear, non-linear, exponential etc.
Selecting the appropriate modeling techniques: linear patterns can be modeled using linear models, non-linear relationship can be modeled using non-linear regression etc.
Identifying Outliers and Anomalies: Data points that fall far outside the general pattern of the data.

# Create a new figure for the plot with a specified size
plt.figure(figsize=(10, 6))

# Create a scatter plot for GDP vs Economic Crisis
# - x=gdp_gt_dt['GDP']: The data for the x-axis
# - y=gdp_gt_dt['Economic Crisis']: The data for the y-axis
# - color='r': The color of the scatter points
# - data=gdp_gt_dt: The DataFrame containing the data
sns.scatterplot(x=gdp_gt_dt['GDP'], y=gdp_gt_dt['Economic Crisis'], color='r', data=gdp_gt_dt)

# Set the title of the plot with a specified font size
plt.title('GDP vs Economic Crisis', size=18)

# Set the label for the x-axis with a specified font size
plt.xlabel("GDP", size=14)

# Set the label for the y-axis with a specified font size
plt.ylabel("Economic Crisis", size=14)

# Display the plot
plt.show()

bivariate-bivariate-scatter1

def plot_scatter(x_column, y_column):
    plt.figure(figsize=(10, 6))
    sns.scatterplot(x=x_column, y=y_column, color='r', data=gdp_gt_dt)
    plt.title(f'{x_column} vs {y_column}', size=18)
    plt.xlabel(x_column, size=14)
    plt.ylabel(y_column, size=14)
    plt.show()

# Create dropdown widgets for selecting the columns
x_column_selector = widgets.Dropdown(
    options=gdp_gt_dt.columns,
    description='X Column:',
    disabled=False,
)

y_column_selector = widgets.Dropdown(
    options=gdp_gt_dt.columns,
    description='Y Column:',
    disabled=False,
)

# Link the dropdown widgets to the plot_scatter function
interactive_plot = widgets.interactive_output(plot_scatter, {'x_column': x_column_selector, 'y_column': y_column_selector})

# Display the widgets and the interactive plot
display(x_column_selector, y_column_selector, interactive_plot)

Bivariate Pair plot

It creates a matrix of plots showing the relationship between each pair of variables in a dataset.
- Diagonals: Often display univariate distributions (e.g., histograms, kernel density estimates) of each variable.
- Off-Diagonals: Show scatter plots of one variable against another.
It provide a comprehensive overview of the interactions between variables, helping to uncover patterns, correlations, and potential anomalies in the data.

Bivariate Pair plot (1)

# Create a pair plot for the DataFrame gdp_gt_dt
# - gdp_gt_dt: The DataFrame containing the data
# - corner=True: Only plot the lower triangle of the pair plot to avoid redundancy
sns.pairplot(gdp_gt_dt, corner=True)

# Display the plot
plt.show()

bivarite bivariate-pair1

Bivariate Pair plot (2)

# Create a pair plot for the DataFrame gdp_gt_dt with various customizations
sns.pairplot(gdp_gt_dt,
             # Use '+' markers for the scatter plots
             markers="+",
             # Use kernel density estimate (KDE) plots for the diagonal
             diag_kind="kde",
             # Use regression plots for the off-diagonal
             kind='reg',
             # Additional keyword arguments for the plots
             plot_kws={
                 # Customize the line in the regression plots
                 'line_kws': {'color': 'b'},
                 # Customize the scatter points
                 'scatter_kws': {'alpha': 0.8, 'color': 'red'}
             },
             # Only plot the lower triangle of the pair plot to avoid redundancy
             corner=True)

# Display the plot
plt.show()

bivarite bivariate-pair2

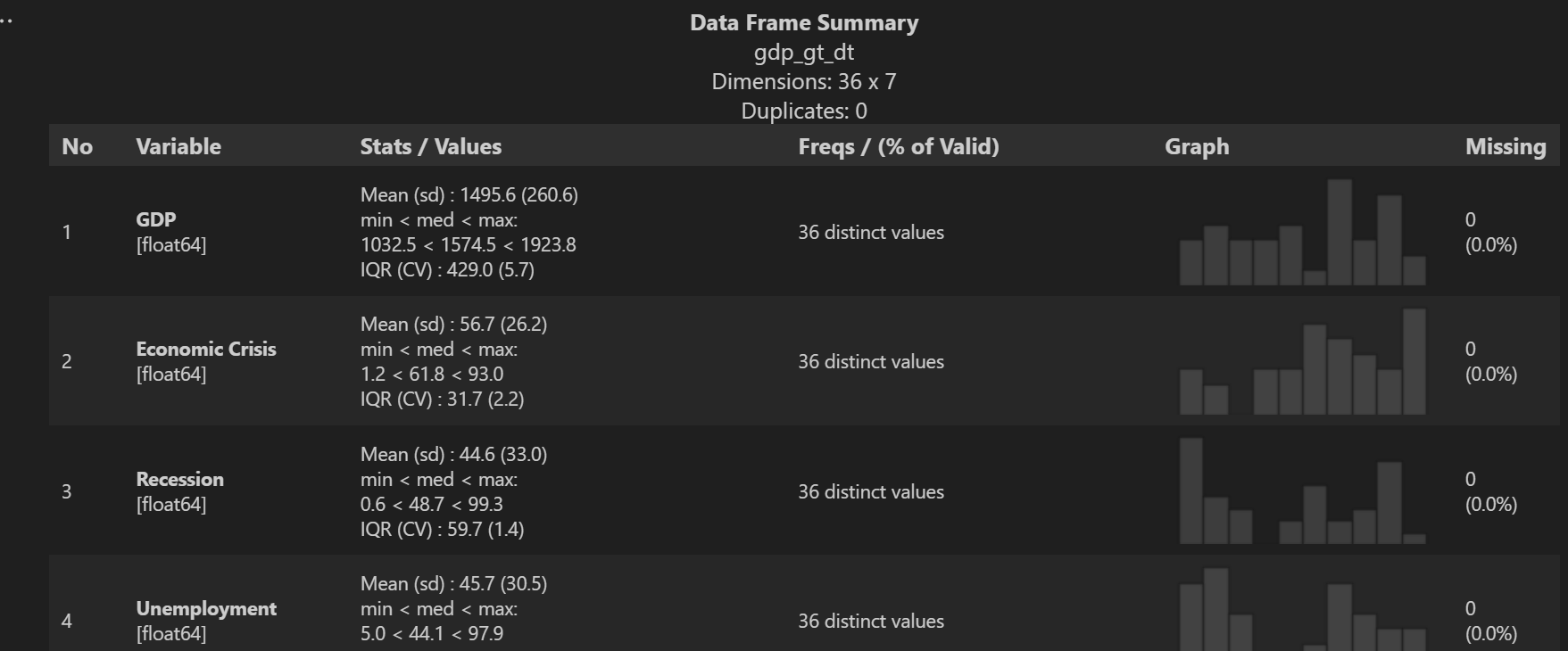

Automatic EDA Tools

stdf = st.dfSummary(gdp_gt_dt)
stdf

Exercise

1) Load the Nigerian GDP dataset and perform initial inspections?

Display the first and last few rows of the dataset.
Check the dimensions (number of rows and columns).
Examine the data types of each column.

2) Calculate descriptive statistics for numerical columns (mean, median, standard deviation, etc.)?
3) Assess the distribution of data using skewness and kurtosis?
4) Create various plots to visualize data distributions and relationships?

Key Points

To understand the structure and contents of the dataset.

Use descriptive statistics and visualizations to explore distributions and relationships.

Summarize findings and prepare data for modeling.

previous episode

Machine Learning based GDP Nowcasting Workshop

next episode

Exploratory Data Analysis (EDA)

Overview

Exploratory Data Analysis (EDA)

Agenda

EDA techniques:

Importing Libraries

Load Example Data

Data Understanding/Explore the DataFrame

Basic Statistical Summary

Histogram and Density Plot

Box Plots

Violin Plot

Time Series Plot

Correlation Analysis

Correlation Table

Correlation Heatmap

Correlation Heatmap (Remove the second half)

Correlation with target variables (1)

Correlation with target variables (2)

Positive Correlations (Filter Insights)

Negative Correlations (Filter Insights)

Positive Correlation greater than certain threshold (Filter Insights)

Negative Correlation less than certain threshold (Filter Insights)

Bivariate Relationships (Bivariate Scatter and Pair Plot)

Bivariate Scatter Plot

Bivariate Pair plot

Bivariate Pair plot (1)

Bivariate Pair plot (2)

Automatic EDA Tools

Exercise

Key Points

previous episode

next episode

Copyright © 2024 UNECA-ACS

Contact

previous episode

Machine Learning based GDP Nowcasting Workshop

next episode

Exploratory Data Analysis (EDA)

Overview

Exploratory Data Analysis (EDA)

Agenda

EDA techniques:

Importing Libraries

Load Example Data

Data Understanding/Explore the DataFrame

Basic Statistical Summary

Histogram and Density Plot

Histogram and Density plot with dropdown widget

Box Plots

Box Plot with dropdown widget

Violin Plot

Violin Plot with dropdown widget

Time Series Plot

Time Series with dropdown widget

Correlation Analysis

Correlation Table

Correlation Heatmap

Correlation Heatmap (Remove the second half)

Correlation with target variables (1)

Correlation with target variables (2)

Positive Correlations (Filter Insights)

Negative Correlations (Filter Insights)

Positive Correlation greater than certain threshold (Filter Insights)

Negative Correlation less than certain threshold (Filter Insights)

Bivariate Relationships (Bivariate Scatter and Pair Plot)

Bivariate Scatter Plot

Bivariate Scatter Plot with dropdown widget

Bivariate Pair plot

Bivariate Pair plot (1)

Bivariate Pair plot (2)

Automatic EDA Tools

Exercise

Key Points

previous episode

next episode

Copyright © 2024 UNECA-ACS

Contact
