Python Core Libraries
Overview
Teaching: 130 min
Exercises: 130 minQuestions
What are the basics of Numpy?
What are the basics of Pandas?
What are the basics of Matplotlib?
Objectives
Learn the basics of Numpy.
Learn the basics of Pandas
Learn the basics of Matplotlib.
Python Core Libraries
NumPy
Agenda
- Learn the basics of
NumPy
, a library fornumerical computing
in Python. - Understand and
create arrays
, the core data structure in NumPy. - Perform basic
mathematical operations
on arrays. - Learn advanced operations like
reshaping
,slicing
, andbroadcasting
.
Introduction to NumPy
NumPy
stands for “Numerical Python” and providesfast
,efficient
, andflexible
array operations.- The core object in NumPy is the
ndarray
(N-dimensional array). - Designed for scientific computation: useful
linear algebra
,Fourier transform
, andrandom number capabilities
etc.
Import the NumPy library
import numpy as np
# Check the version of NumPy
print(np.__version__)
Creating NumPy Arrays
Creating Arrays from Lists
Create a 1D array
arr = np.array([1, 2, 3, 4])
print(arr)
Create a 2D array
arr_2d = np.array([[1, 2], [3, 4]])
print(arr_2d)
Create a 3D Arrays
c = np.array([[[1,1,2], [2,3,3]], [[1,1,1], [1,1,1]], [[1,1,1], [1,1,1]]])
Creating Arrays with NumPy Functions
Create an array of zeros
zeros = np.zeros((2, 3)) # 2 rows, 3 columns
print(zeros)
Create an array of ones
ones = np.ones((3, 2)) # 3 rows, 2 columns
print(ones)
Random numbers
a = np.random.rand(4) # uniform in [0, 1]
b = np.random.randn(4) # Gaussian
Create an array with a range of numbers
range_arr = np.arange(0, 10, 2) # Start at 0, stop before 10, step by 2
print(range_arr)
Create an array with evenly spaced numbers
linspace_arr = np.linspace(0, 1, 5) # Start at 0, stop at 1, 5 evenly spaced values
print(linspace_arr)
Basic Array Operations
Mathematical Operations
Perform basic math operations
arr = np.array([1, 2, 3, 4])
print(arr + 2) # Add 2 to each element
print(arr * 3) # Multiply each element by 3
Perform element-wise operations with another array
arr2 = np.array([5, 6, 7, 8])
print(arr + arr2) # Element-wise addition
print(arr * arr2) # Element-wise multiplication
Array Properties
Get properties of an array
arr = np.array([[1, 2, 3], [4, 5, 6]])
print(arr.shape) # Shape of the array (rows, columns)
print(arr.size) # Total number of elements
print(arr.dtype) # Data type of elements
Indexing and Slicing
Indexing
Access elements of a 1D array
arr = np.array([10, 20, 30, 40])
print(arr[0]) # First element
print(arr[-1]) # Last element
Access elements of a 2D array
arr_2d = np.array([[1, 2, 3], [4, 5, 6]])
print(arr_2d[0, 1]) # Element in first row, second column
print(arr_2d[1, 2]) # Element in second row, third column
Slicing
Slice a 1D array
arr = np.array([10, 20, 30, 40, 50])
print(arr[1:4]) # Elements from index 1 to 3
print(arr[:3]) # First three elements
Slice a 2D array
arr_2d = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
print(arr_2d[:2, 1:]) # First two rows, columns 2 and 3
print(arr_2d[1:, :2]) # Last two rows, first two columns
Reshaping Arrays
Changing the Shape of an Array
Reshape a 1D array to a 2D array
arr = np.arange(1, 10)
reshaped = arr.reshape(3, 3) # 3 rows, 3 columns
print(reshaped)
Flatten a 2D array back to 1D
flattened = reshaped.flatten()
print(flattened)
Broadcasting
- Broadcasting allows operations between arrays of different shapes.
Add a scalar to a 2D array
arr_2d = np.array([[1, 2, 3], [4, 5, 6]])
print(arr_2d + 10)
Add a 1D array to a 2D array
row = np.array([1, 2, 3])
print(arr_2d + row)
Asking For Help
np.add?
np.array?
np.arr*?
np.con*?
Key Points:
- NumPy arrays are efficient for numerical computations.
- Perform operations like addition, multiplication, and broadcasting directly on arrays.
- Use slicing and indexing to access or modify specific elements.
Pandas
Agenda
- Learn the basics of the Pandas library.
- Understand how to work with Series and DataFrames.
- Perform data manipulation tasks like filtering, sorting, and aggregating.
- Learn how to handle missing data.
Introduction to Pandas
Pandas
is a powerful library fordata manipulation
andanalysis
.- The two main data structures are:
Series
: A one-dimensional labeled array.DataFrame
: A two-dimensional table-like data structure.
Import the Pandas library
import pandas as pd
# Check the version of Pandas
print(pd.__version__)
Pandas Series
- A Series is a one-dimensional array with labels (index).
- It is similar to a column in a spreadsheet.
# Create a Series from a list
data = [10, 20, 30, 40]
series = pd.Series(data, index=["A", "B", "C", "D"])
print(series)
# Accessing elements in a Series
print(series["B"]) # Output: 20
Pandas DataFrame
- A DataFrame is a two-dimensional structure with rows and columns.
- Think of it as a table in a database or an Excel sheet.
Create a DataFrame from a dictionary
data = {
"Name": ["Alice", "Bob", "Charlie"],
"Age": [25, 30, 35],
"City": ["New York", "Los Angeles", "Chicago"]
}
df = pd.DataFrame(data)
print(df)
Viewing DataFrame
- Use
DataFrame.head()
andDataFrame.tail()
to view the top and bottom rows of the frame respectively
Print the head of the DataFrame
df.head()
Print the tail of the DataFrame
df.tail()
Display DataFrame information
df.info()
Display the data types
df.dtypes
Display statistical summary of DataFrame
df.describe()
Display the DataFrame index and columns
- Use DataFrame.index or DataFrame.columns to get the DataFrame index and columns
Get the DataFrame index
df.index
Get the DataFrame columns
df.columns
Accessing a DataFrame
# Accessing a column
print(df["Name"])
# Accessing rows using loc
print(df.loc[1])
# Accessing rows using iloc
print(df.iloc[2])
Adding New Columns
df['Experience'] = np.random.randint(1, 5, size=len(df))
df.head()
Dropping Columns
- Use the
drop()
method to remove columns. - Specify
axis=1
to indicate columns. - Use
inplace=True
to modify the DataFrame directly (optional).
# Dropping a Single Column
df_dropped = df.drop("City", axis=1)
print(df_dropped)
# Alternatively, drop in place (modifies the original DataFrame)
df.drop("City", axis=1, inplace=True)
print(df)
# Dropping Multiple Columns
df = pd.DataFrame(data) # Recreate the original DataFrame
df_dropped = df.drop(["Age", "City"], axis=1)
print(df_dropped)
Dropping Rows
- Use the
drop()
method to remove rows. - Specify
axis=0
to indicate rows (default behavior). - Use
inplace=True
to modify the DataFrame directly (optional).
# Drop the row with index 1
df_dropped = df.drop(1, axis=0)
print(df_dropped)
# Alternatively, drop in place
df.drop(1, axis=0, inplace=True)
print(df)
# Drop multiple rows
df = pd.DataFrame(data) # Recreate the original DataFrame
df_dropped = df.drop([0, 2], axis=0)
print(df_dropped)
Reading and Writing Data
- Pandas supports reading and writing data in multiple formats (CSV, Excel, JSON, etc.).
Read data from a CSV file
df = pd.read_csv("example.csv")
print(df)
Write data to a CSV file
df.to_csv("output.csv", index=False)
Reading Excel Files
# Read data from an Excel file
df = pd.read_excel("example.xlsx", sheet_name="Sheet1") # Specify the sheet name
# Read the first 5 rows (head) of the DataFrame
print(df.head())
Writing Excel Files
- To save a DataFrame to an Excel file, use the
to_excel()
function.
# Save DataFrame to an Excel file
df.to_excel("output.xlsx", index=False) # Save without including the index
Writing Multiple Sheets
- To write multiple DataFrames to different sheets in the same Excel file, use ExcelWriter.
# Create multiple DataFrames
df1 = pd.DataFrame({"A": [1, 2, 3], "B": [4, 5, 6]})
df2 = pd.DataFrame({"X": [7, 8, 9], "Y": [10, 11, 12]})
# Write to multiple sheets
with pd.ExcelWriter("multi_sheet_output.xlsx") as writer:
df1.to_excel(writer, sheet_name="Sheet1", index=False)
df2.to_excel(writer, sheet_name="Sheet2", index=False)
Reading JSON Files
# Read data from a JSON file
df = pd.read_json("example.json")
# Display the first 5 rows
print(df.head())
Writing JSON Files
- To save a DataFrame to a JSON file, use the
to_json()
function.
# Save DataFrame in a column-oriented JSON format
df.to_json("column_oriented.json", orient="columns")
Data Manipulation
Filtering
: Select specific rows or columns.Sorting
: Sort data based on column values.Aggregating
: Perform operations like sum, mean, count, etc.
Filtering
# Filter rows where Age > 25
filtered_df = df[df["Age"] > 25]
print(filtered_df)
# Filter rows where Age > 25 and City is "Chicago"
filtered_df = df[(df["Age"] > 25) & (df["City"] == "Chicago")]
print(filtered_df)
Sort by Age in descending order
sorted_df = df.sort_values("Age", ascending=False)
print(sorted_df)
Aggregations
# Calculate the mean age
mean_age = df["Age"].mean()
print(f"Mean Age: {mean_age}")
Selecting Columns and Rows in Pandas
Selecting Columns
- You can select one or multiple columns from a DataFrame.
- Columns can be accessed using
square brackets []
ordot notation
(only for single-column names without spaces).
Selecting a Single Column
data = {
"Name": ["Alice", "Bob", "Charlie"],
"Age": [25, 30, 35],
"City": ["New York", "Los Angeles", "Chicago"]
}
df = pd.DataFrame(data)
# Select a single column
age_column = df["Age"]
print(age_column)
# Alternatively, use dot notation
city_column = df.City
print(city_column)
Selecting Multiple Columns
subset = df[["Name", "City"]]
print(subset)
Renaming Columns
df.rename(columns={"Age": "Years"}, inplace=True)
print(df)
Selecting Rows
- Use
.loc[]
for label-based selection (index labels). - Use
.iloc[]
for position-based selection (index positions).
Selecting Rows by Index Label (.loc[])
# Select a single row by index label
row_1 = df.loc[1]
print(row_1)
# Select multiple rows by index labels
rows = df.loc[[0, 2]]
print(rows)
Selecting Rows by Index Position (.iloc[])
# Select a single row by index position
row_0 = df.iloc[0]
print(row_0)
# Select multiple rows by index positions
rows = df.iloc[[0, 2]]
print(rows)
Selecting Specific Rows and Columns
- Combine .loc[] or .iloc[] to select specific rows and columns.
Using .loc[] for Specific Rows and Columns
# Select rows 0 and 2, and columns "Name" and "City"
subset = df.loc[[0, 2], ["Name", "City"]]
print(subset)
Using .iloc[] for Specific Rows and Columns
# Select rows 0 and 2, and columns at positions 0 and 2
subset = df.iloc[[0, 2], [0, 2]]
print(subset)
Handling Missing Data
- Use
isna()
to identify missing values. - Fill missing values with fillna().
- Remove rows/columns with missing values using dropna().
Handling Missing Data
Create a DataFrame with missing values
data = {
"Name": ["Alice", "Bob", None],
"Age": [25, None, 35],
"City": ["New York", "Los Angeles", "Chicago"]
}
df = pd.DataFrame(data)
Check for missing values
print(df.isna())
Fill missing values
filled_df = df.fillna("Unknown")
print(filled_df)
Drop rows with missing values
cleaned_df = df.dropna()
print(cleaned_df)
Summary of Pandas Selection Methods
Selection Type | Syntax Example | Notes |
---|---|---|
Single Column | df["column_name"] |
Access column as a Series. |
Multiple Columns | df[["col1", "col2"]] |
Returns a new DataFrame. |
Single Row (label) | df.loc[label] |
Label-based row selection. |
Single Row (position) | df.iloc[position] |
Position-based row selection. |
Specific Rows and Columns | df.loc[[rows], [columns]] |
Label-based row/column selection. |
Filtering Rows | df[condition] |
Filter rows based on conditions. |
Matplotlib
Agenda
- Learn the basics of the Matplotlib library.
- Understand how to create various types of plots (line, bar, scatter, etc.).
- Customize plots with titles, labels, legends, and styles.
- Save plots as image files (PNG, PDF, SVG, EPS, and PGF.).
Introduction to Matplotlib
- Matplotlib is a python 2D and 3D plotting library which produces scientific figures and publication quality figures.
- The core component is the
pyplot
module, often imported as plt. - It is modeled closely after “Matlab™”. Therefore, the majority of plotting commands in pyplot have Matlab™ analogs with similar arguments.
- You can create a wide variety of plots, including
line plots
,bar charts
,histograms
,scatter plots
, and more.
Importing Matplotlib
# Import Matplotlib's pyplot module
import matplotlib.pyplot as plt
# Check the Matplotlib version
print(plt.__version__)
Line Plot

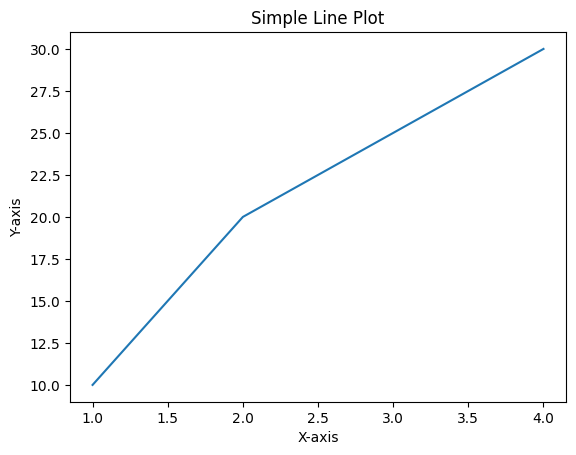

Creating a Simple Line Plot
# Data for the plot
x = [1, 2, 3, 4]
y = [10, 20, 25, 30]
# Create a line plot
plt.plot(x, y)
plt.title("Simple Line Plot") # Add a title
plt.xlabel("X-axis") # Add an X-axis label
plt.ylabel("Y-axis") # Add a Y-axis label
plt.show() # Display the plot

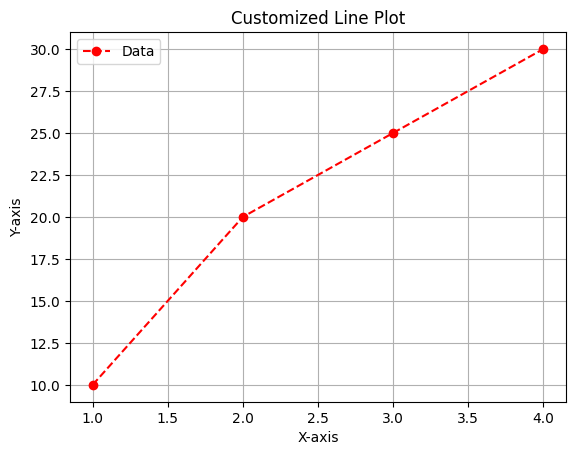

Customizing the Line Plot
# Customize line style, color, and markers
plt.plot(x, y, color="red", linestyle="--", marker="o", label="Data")
plt.title("Customized Line Plot")
plt.xlabel("X-axis")
plt.ylabel("Y-axis")
plt.legend() # Add a legend
plt.grid(True) # Add grid lines
plt.show()

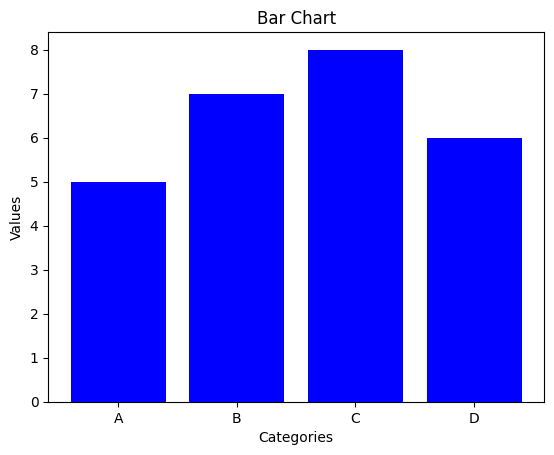

Bar Chart
Creating a Bar Chart
# Data for the bar chart
categories = ["A", "B", "C", "D"]
values = [5, 7, 8, 6]
# Create a bar chart
plt.bar(categories, values, color="blue")
plt.title("Bar Chart")
plt.xlabel("Categories")
plt.ylabel("Values")
plt.show()

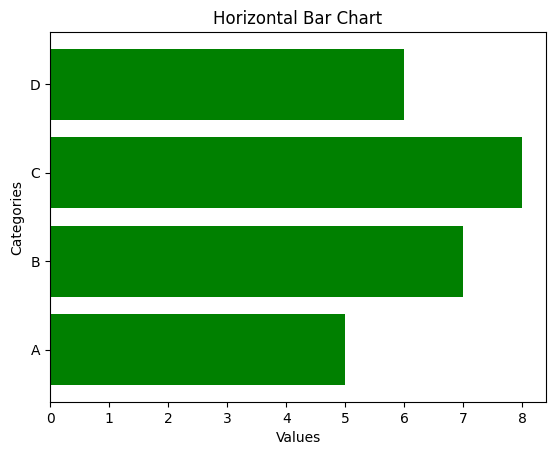

Horizontal Bar Chart
# Create a horizontal bar chart
plt.barh(categories, values, color="green")
plt.title("Horizontal Bar Chart")
plt.xlabel("Values")
plt.ylabel("Categories")
plt.show()

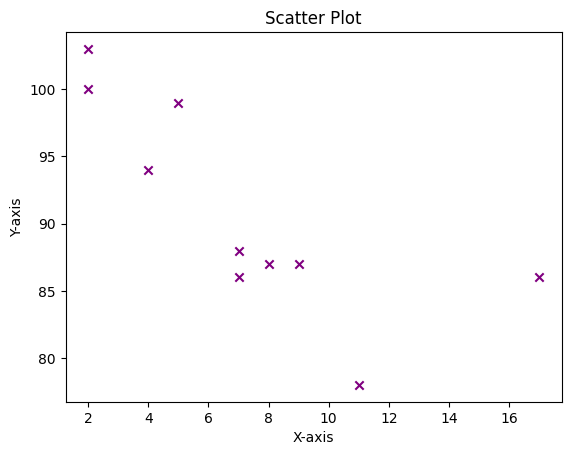

Scatter Plot
Creating a Scatter Plot
# Data for the scatter plot
x = [5, 7, 8, 7, 2, 17, 2, 9, 4, 11]
y = [99, 86, 87, 88, 100, 86, 103, 87, 94, 78]
# Create a scatter plot
plt.scatter(x, y, color="purple", marker="x")
plt.title("Scatter Plot")
plt.xlabel("X-axis")
plt.ylabel("Y-axis")
plt.show()
Histogram
Creating a Histogram
# Data for the histogram
data = [22, 87, 5, 43, 56, 73, 55, 54, 11, 20, 51, 5, 79, 31, 27]
# Create a histogram
plt.hist(data, bins=5, color="orange", edgecolor="black")
plt.title("Histogram")
plt.xlabel("Data")
plt.ylabel("Frequency")
plt.show()

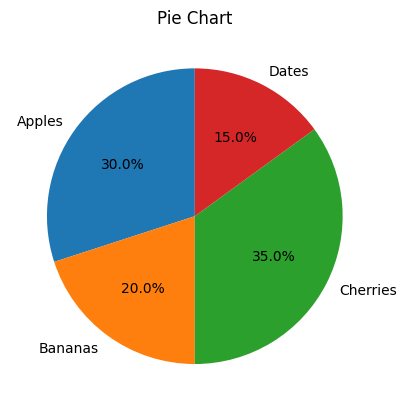

Pie Chart
Creating a Pie Chart
# Data for the pie chart
sizes = [30, 20, 35, 15]
labels = ["Apples", "Bananas", "Cherries", "Dates"]
# Create a pie chart
plt.pie(sizes, labels=labels, autopct="%1.1f%%", startangle=90)
plt.title("Pie Chart")
plt.show()
Subplots
- Subplots allow you to create multiple plots in a single figure.
- Use
plt.subplot()
for simple grids andplt.subplots()
for more control.

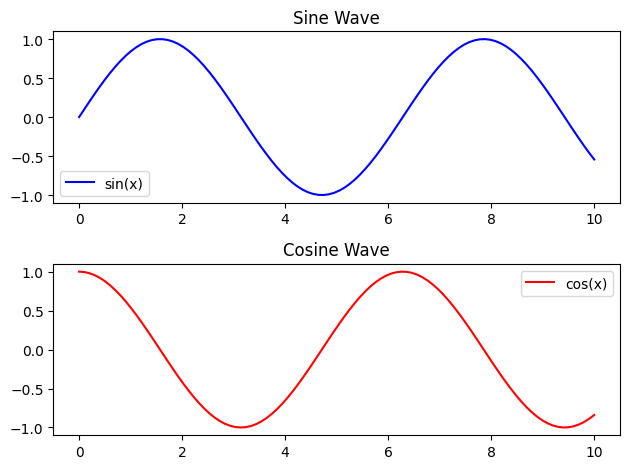

Creating Simple Subplots
import matplotlib.pyplot as plt
import numpy as np
# Data for plots
x = np.linspace(0, 10, 100)
y1 = np.sin(x)
y2 = np.cos(x)
# Create subplot
plt.subplot(2, 1, 1) # 2 rows, 1 column, 1st subplot
plt.plot(x, y1, label="sin(x)", color="blue")
plt.title("Sine Wave")
plt.legend()
plt.subplot(2, 1, 2) # 2 rows, 1 column, 2nd subplot
plt.plot(x, y2, label="cos(x)", color="red")
plt.title("Cosine Wave")
plt.legend()
plt.tight_layout() # Adjust layout to avoid overlapping
plt.show()
Using plt.subplots() for More Control
# Create a figure with multiple subplots
fig, axes = plt.subplots(2, 2, figsize=(10, 8))
# Sine wave
axes[0, 0].plot(x, y1, color="blue")
axes[0, 0].set_title("Sine Wave")
# Cosine wave
axes[0, 1].plot(x, y2, color="red")
axes[0, 1].set_title("Cosine Wave")
# Exponential
y3 = np.exp(x / 10)
axes[1, 0].plot(x, y3, color="green")
axes[1, 0].set_title("Exponential Function")
# Logarithmic
y4 = np.log(x + 1)
axes[1, 1].plot(x, y4, color="purple")
axes[1, 1].set_title("Logarithmic Function")
# Add overall titles and adjust layout
fig.suptitle("Multiple Plots in One Figure", fontsize=16)
plt.tight_layout(rect=[0, 0, 1, 0.95]) # Adjust space for the title
plt.show()
Generate and plot synthetic GDP data
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
# Generate synthetic GDP data
np.random.seed(42) # For reproducibility
years = np.arange(2000, 2023) # 2000 to 2022
gdp = np.cumsum(np.random.uniform(0.5, 5, len(years))) + 100 # Cumulative GDP growth starting at 100
# Create a DataFrame
gdp_data = pd.DataFrame({"Year": years, "GDP": gdp})
# Plot the data
plt.figure(figsize=(10, 6))
plt.plot(gdp_data["Year"], gdp_data["GDP"], marker="o", linestyle="-", color="blue", label="GDP Growth")
# Adding plot details
plt.title("Annual GDP Growth (2000-2022)", fontsize=16)
plt.xlabel("Year", fontsize=12)
plt.ylabel("GDP (in Billion $)", fontsize=12)
plt.grid(True, linestyle="--", alpha=0.6)
plt.legend(fontsize=12)
plt.xticks(rotation=45)
plt.tight_layout()
# Show the plot
plt.show()

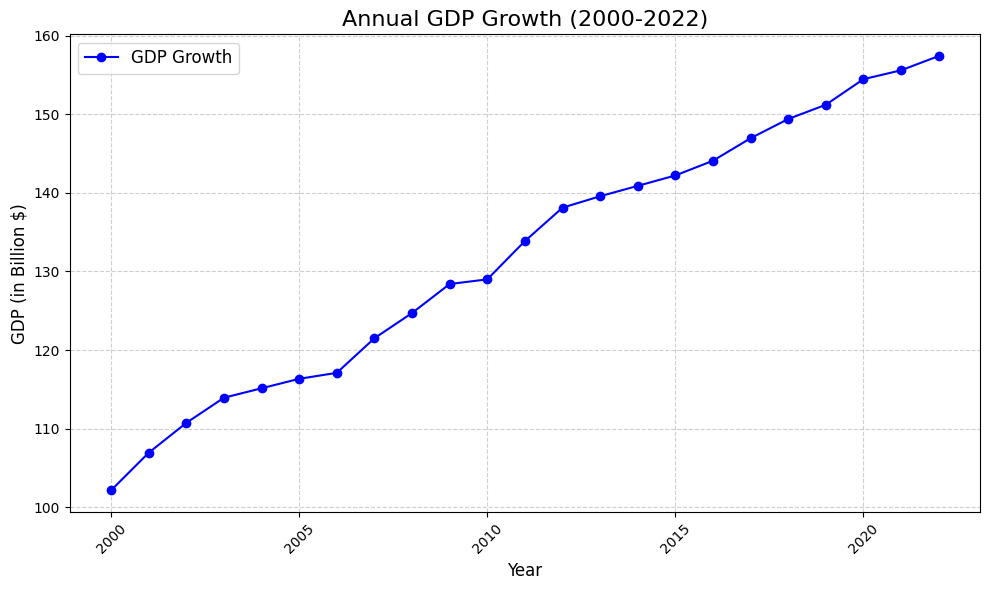

Display the GDP Plot
3D Plots (Optional)
- Matplotlib provides 3D plotting functionality through the mpl_toolkits.mplot3d module.
- Use ax.plot_surface() for surface plots and ax.scatter() for 3D scatter plots.

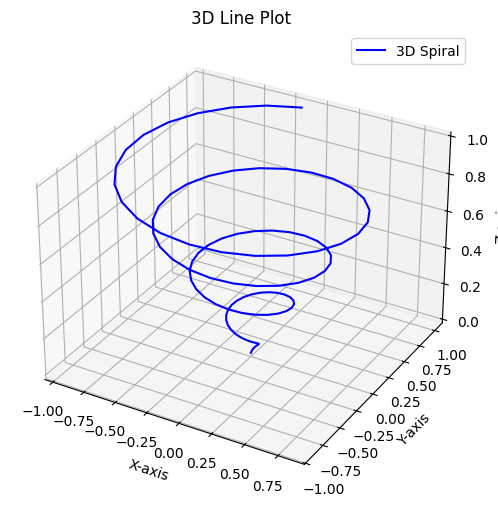

3D Line Plot
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt
import numpy as np
# Data for a 3D line
z = np.linspace(0, 1, 100)
x = z * np.sin(25 * z)
y = z * np.cos(25 * z)
# Create a 3D plot
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(111, projection="3d")
ax.plot(x, y, z, label="3D Spiral", color="blue")
ax.set_title("3D Line Plot")
ax.set_xlabel("X-axis")
ax.set_ylabel("Y-axis")
ax.set_zlabel("Z-axis")
ax.legend()
plt.show()

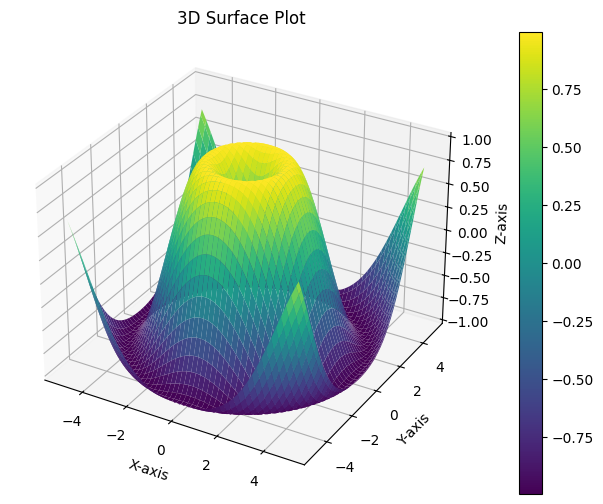

3D Surface Plot
# Create data for a surface plot
x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
x, y = np.meshgrid(x, y)
z = np.sin(np.sqrt(x**2 + y**2))
# Create a 3D surface plot
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(111, projection="3d")
surf = ax.plot_surface(x, y, z, cmap="viridis")
fig.colorbar(surf) # Add a color bar for reference
ax.set_title("3D Surface Plot")
ax.set_xlabel("X-axis")
ax.set_ylabel("Y-axis")
ax.set_zlabel("Z-axis")
plt.show()

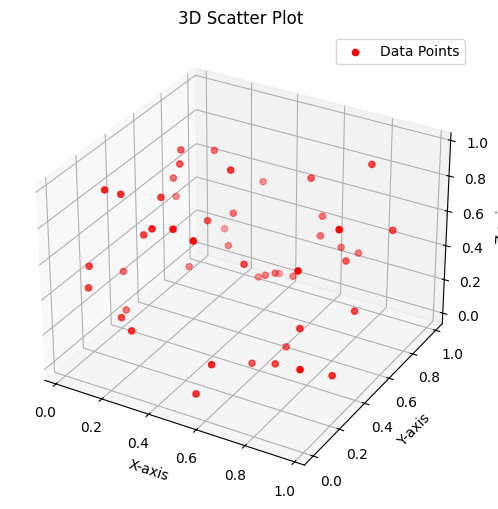

3D Scatter Plot
# Create random 3D data
np.random.seed(42)
x = np.random.rand(50)
y = np.random.rand(50)
z = np.random.rand(50)
# Create a 3D scatter plot
fig = plt.figure(figsize=(8, 6))
ax = fig.add_subplot(111, projection="3d")
ax.scatter(x, y, z, color="red", marker="o", label="Data Points")
ax.set_title("3D Scatter Plot")
ax.set_xlabel("X-axis")
ax.set_ylabel("Y-axis")
ax.set_zlabel("Z-axis")
ax.legend()
plt.show()
Saving a Plot
Saving a Plot as an Image
# Create a plot
plt.plot(x, y)
plt.title("Line Plot")
# Save the plot as a PNG file
plt.savefig("line_plot.png")
# Save the plot as a high-quality image
plt.savefig("line_plot_high_res.png", dpi=300)
# Display the plot
plt.show()
Key Points:
- Matplotlib provides tools for creating a variety of
plots
andvisualizations
. - Use
plt.plot()
for line plots,plt.bar()
for bar charts,plt.scatter()
for scatter plots, andplt.hist()
for histograms. - Customize plots with
titles
,axis
labels
,legends
, andgrid lines
. - Save your plots using
plt.savefig()
in various formats.
Exercise
Numpy
1) Create a 1D array of integers from 5 to 15.
2) Create a 2D array of shape (3, 3) filled with ones.
3) Multiply all elements in the array [2, 4, 6, 8] by 3.
4) Add the arrays [1, 2, 3] and [4, 5, 6].
5) Access the last row of the array [[1, 2, 3], [4, 5, 6], [7, 8, 9]].
6) Slice the array np.arange(10) to get only even numbers.
7) Reshape the array np.arange(12) into a (3, 4) array.
8) Flatten the reshaped array back into 1D.
Pandas
1) Create a Pandas Series with the following data: [100, 200, 300]. Assign the indices as [“X”, “Y”, “Z”].
2) Create a DataFrame with columns Product, Price, and Stock using the following data:
Products: [“Laptop”, “Tablet”, “Smartphone”] Prices: [1000, 500, 800] Stock: [50, 100, 200] Filtering and Sorting
3) Filter rows in the DataFrame where Price > 600.
4) Sort the DataFrame by Stock in ascending order.
5) Create a DataFrame with some missing values and write code to:
- Replace missing values with “Not Available”.
- Remove rows with missing values.
Matplotlib
1) Create a line plot for x = [1, 2, 3, 4, 5] and y = [10, 20, 25, 30, 35]. Customize the plot by changing the line color, adding markers, and a legend.
2) Create a bar chart for categories [“Math”, “Science”, “History”, “English”] and values [85, 90, 75, 80]. Add a title, and X and Y axis labels.
3) Plot x = [10, 20, 30, 40, 50] and y = [5, 15, 25, 35, 45] as a scatter plot. Change the marker style and color.
4) Create a histogram for the dataset [5, 7, 8, 9, 5, 3, 4, 5, 7, 8, 9, 10] with 4 bins.
5) Create a pie chart for sizes = [40, 30, 20, 10] with labels [“A”, “B”, “C”, “D”]
6) Import your annual GDP data into a Pandas DataFrame and visualize the data using Matplotlib.
Key Points
NumPy
providesfast
,efficient
, andflexible
array operations.Pandas is a powerful library for data manipulation and analysis.
Matplotlib is a python 2D and 3D plotting library which produces scientific figures and publication quality figures.
